Selasa, 26 Februari 2013

Overhead DVD Player In Chevy Traverse

I recently did an Alpine overhead DVD player/monitor in a 2012 Chevy Traverse. It was a very simple straight forward install. If you're getting ready to install an overhead in one of these, you will probably have it in and out in about an hour.

Overhead DVD Player Chevy Traverse
I always clean and check the roof of the vehicle prior to beginning the installation, just to make sure there isn't any unknown damage to the roof because lets be realistic, who really pays attention to the outside roof of there SUV. But you better believe after the install, the owner will be up there with a microscope! lol.

Overhead DVD Player Chevy Traverse
You will first need to remove the dome light. The side facing the front of the vehicle has several plastic tabs, if you try to pry on this side you will break the tabs off.

Overhead DVD Player Chevy Traverse
There will be four clips holding the dome light into place, two on the top and two on the side facing the back of the vehicle.

Overhead DVD Player Chevy Traverse
 Once you got the dome light removed, you will see the top roof support. This is what you want to mount your overhead to.

Overhead DVD Player Chevy Traverse
Once I had the wiring done, which was just tapping into the positive dome light wire, 12 volt constant and wiring a relay using the brown "Accessory" under the steering column. I secured the mounting plate to the roof support with several screws. I recommend starting the screws with a small drill or screw gun, and slowly tightening then by hand, Always tripple check the size of the screws being used, make sure they are not long enough to go into your roof support and threw the thin metal that makes up the roof of the vehicle!

Overhead DVD Player Chevy Traverse
Once the screws are properly tightened I normally put a strips of ducktape over the screws to help hold then in place.

Alpine Overhead DVD Player Chevy Traverse
Once you connect your wire harnesses and mount the over head to the mounting plate, your pretty much done.

Alpine Overhead DVD Player Chevy Traverse
I always check for full functionality of the overhead, dome lights, FM modulator if equipped as well as testing all wireless headphones.

Alpine Overhead DVD Player Chevy Traverse

's
#car #caraudio #12volt #sandiego #california

Kamis, 21 Februari 2013

Upgrading Rear Speakers Toyota Camry With Factory JBL Sound System

If your upgrading the rear speakers in a Toyota Camry 2006-2011 (XV40) that is equipped with the factory premium JBL sound system, this tip may help.

Toyota Camry Factory Rear Speakers
This is what the factory rear speaker should look like once removed.

Toyota Camry Factory Rear Speakers

Toyota Camry Factory Rear Speakers
As you can see there will be four wires pinned in the factory speaker harness.
You can easily identify the positive and negative wires by using a AA battery to pop the speakers, that is if the speakers are still functional. If you aren't familiar with how to test a speakers polarity with a AA battery, I will be explaining the process in a new post within the next day or two.

Toyota Camry Factory Rear Speakers
 Once you have identified the positive and negative wires, for both the tweeter and the mid-range speaker cut the factory speaker harness off the factory tweeter and mid-range speaker. Leaving as much wire in tacked to the factory speaker harness as possible, you will need it to wire your new Alpine speaker.

Toyota Camry Factory Rear Speakers

Alpine Type E SPE-6090 Speakers
I will be replacing the factory speakers with these Alpine Type E (SPE-6090) aftermarket speakers.

Alpine Type E SPE-6090 Speakers
You will notice on most coaxial speakers the leads for the tweeter taped to the side of the magnet.

Camry Rear Speaker Upgrade Alpine
 In order for these speakers to work properly in these vehicles you will need to wire the tweeter and the mid-range independently. Because the output going to the factory tweeter and mid-range speaker is already crossed over, if you just connect one pair of the factory speaker wires to the new Alpine speaker you will either get just the high frequencies or just the low frequencies playing out of your new speaker, depending on what pair you connect. You can't just connect both pairs of factory speaker wires together to get full range, you would need some sort of summing module. I have already identified the wires in this vehicle "Red" wire is the mid- range speaker negative and the "yellow" is the mid-range positive. You can then cut the tweeter wires off the main terminals on the new Alpine speaker.

Camry Rear Speaker Upgrade Alpine Speakers   Car Audio Expert
 The wire with the black stripe on the left of this Alpine speaker should be connected to the negative tweeter wire, which should be the "Black" wire coming off the factory speaker harness. Then connect the last wire which should be the "Green" wire coming off the factory speaker harness to the wire coming off the small capacitor mounted to the side of the Alpine speaker.

Camry Rear Speaker Upgrade Alpine Speakers   Car Audio Expert
 If needed use a couple small zip ties to keep everything in place.

Toyota Camry Rear Alpine Speakers
 It's now time to plug the new Alpine speaker into the vehicle and secure it using some new mounting screws. Now just repeat the process on the other speaker, the factory wire color on the speaker harnesses should be the same on both sides.

- 's
#car #audio #caraudio #toyota #jbl #12volt #sandiego

1999-2003 Honda S2000 Tach Wire For Remote Start.


When installing a remote start system, it's always best to tap into a tachometer wire if possible. In this 2001 Honda S2000 it couldn't get any easier to find the Tach wire. It should be the blue wire pinned in a black harness, right next to the firewall on the driver side in the engine bay. Normally it's secured with blue tape.

Honda S2000 Tach Wire

This should be the same in all the first generation Honda S2000s (1999-2003)

- 's
#honda #s2000 #remotestart #caraudio #car #sandiego

Rabu, 06 Februari 2013

Retain Factory Aux Plug With Aftermarket Stereo.

If you are going to be changing out the factory stereo in a vehicle that is equipped with a 3.5 Aux plug located somewhere other than the stereo itself, you will typically lose the functionality of that Aux input plug unless you wire it to the new stereo. If you would like to keep the factory Aux plug functioning with the new stereo, you will first want to make sure you purchase a stereo with an audio Aux input on the back.

Toyota Tundra   Car Audio Expert
The vehicle I will be doing this on is a Second Generation Toyota Tundra.

Toyota Tundra   Car Audio Expert
Once you have got your new stereo, you will need to figure out if the audio Aux input on the back is a 3.5 plug or if it is left/right RCA audio plugs. The best thing to do is purchase a basic (3.5 aux to left/right RCAs cable) so you will have both types of connections. The picture above is what the cable will look like. I will actually need both ends for this install. The RCAs to run to the new stereo, and the 3.5 to identify the factory wires coming off the back of the factory Aux plug.

Toyota Tundra   Car Audio Expert

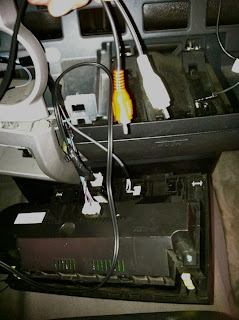

You will then need to cut the 3.5-RCA aux cable, making sure you have enough length on the side you will need to run to the back of the new aftermarket stereo. Then plug the 3.5 Aux side into the factory plug.

Toyota Tundra   Car Audio Expert
 Now the easy part, you will need a continuity tester. Most multi meters should have the capability of testing continuity. Once you locate the wires on the back of the factory Aux plug, just test continuity between the wires on the back of the plug and the exposed wires coming off the cut 3.5 plug that should be plugged into the front.

Toyota Tundra   Car Audio Expert
On this Toyota Tundra you would want to connect the wires shielding the smaller gauge red and white wires to the white wire coming off the back of factory Aux plug, because there is continuity between both them. You would then connect the other two wires using the same continuity test. The red wire goes to the black wire coming off the back of the factory Aux plug, and the white wire goes to the red wire coming off the factory Aux plug.

Toyota Tundra   Car Audio Expert
This is a fairly easy process, that can also be used to hardwire audio into the back of the factory Aux plug. For example if you where keeping the factory stereo and you where installing an overhead, headrest monitors or a portable satellite radio. so you don't have an Aux cable showing to give it a cleaner look.
